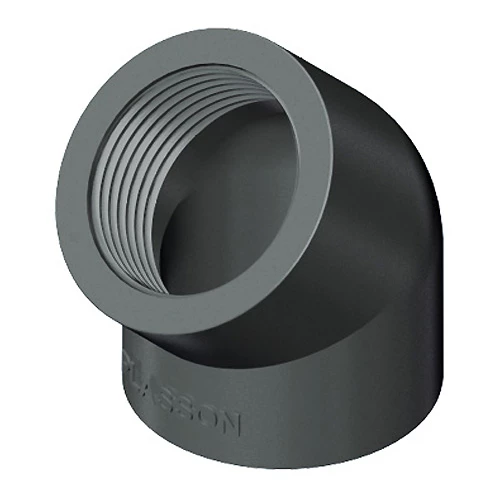

45° PVC ELBOW - THREAD
PVC threaded fittings is suitable for installations up to 16 bar (at 20°C) for transport of fluids for example irrigation, industry and swimmingpool installations. PVC threaded fittings is produced according to international standards including ISO264, 727, 2536, 3460, KIWA Criteria Std. No. 54 and DIN8063, 19532, UNI EN 1452-3, AFNOR 54-029 and 54-028. Color is grey according to standards. PVC threaded fittings is joined using PTFE tape.
Check the documents to see which products are covered by the approvals.
| Dia. (inch) | Name | Angle | Pressure Rating | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|---|
3/8" | PVC ELBOW THREADED 10500178 | 45 | 16 | PVC | 0.018 | ||
1/2" | PVC ELBOW THREADED 10500179 | 45 | 16 | PVC | 0.011 | ||
3/4" | PVC ELBOW THREADED 10500180 | 45 | 16 | PVC | 0.023 | ||
1" | PVC ELBOW THREADED 10500181 | 45 | 16 | PVC | 0.039 | ||
1 1/4" | PVC ELBOW THREADED 10500182 | 45 | 16 | PVC | 0.072 | ||
1 1/2" | PVC ELBOW THREADED 10500183 | 45 | 16 | PVC | 0.168 | ||
2" | PVC ELBOW THREADED 10500184 | 45 | 16 | PVC | 0.251 | ||
2 1/2" | PVC ELBOW THREADED 10500185 | 45 | 16 | PVC | 0.34 | ||
3" | PVC ELBOW THREADED 10500186 | 45 | 16 | PVC | 0.702 | ||
4" | PVC ELBOW THREADED 10500187 | 45 | 16 | PVC | 0.85 |
