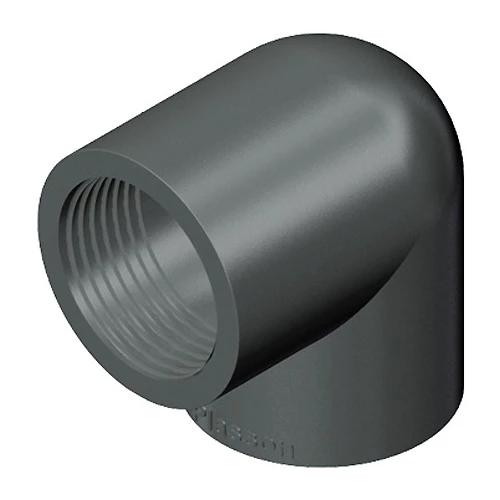

90° PVC ELBOW - THREAD
PVC threaded fittings is suitable for installations up to 16 bar (at 20°C) for transport of fluids for example irrigation, industry and swimmingpool installations. PVC threaded fittings is produced according to international standards including ISO264, 727, 2536, 3460, KIWA Criteria Std. No. 54 and DIN8063, 19532, UNI EN 1452-3, AFNOR 54-029 and 54-028. Color is grey according to standards. PVC threaded fittings is joined using PTFE tape.
Check the documents to see which products are covered by the approvals.
| Dia. (inch) | Name | Angle | Pressure Rating | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|---|
3/8" | PVC ELBOW 10500190 | 90 | 16 | PVC | 0.01 | ||
1/2" | PVC ELBOW 10500195 | 90 | 16 | PVC | 0.022 | ||
3/4" | PVC ELBOW 10500200 | 90 | 16 | PVC | 0.037 | ||
1" | PVC ELBOW 10500205 | 90 | 16 | PVC | 0.062 | ||
1 1/4" | PVC ELBOW 10500210 | 90 | 16 | PVC | 0.09 | ||
1 1/2" | PVC ELBOW 10500215 | 90 | 16 | PVC | 0.018 | ||
2" | PVC ELBOW 10500220 | 90 | 16 | PVC | 0.031 | ||
2 1/2" | PVC ELBOW 10500225 | 90 | 16 | PVC | 0.425 | ||
3" | PVC ELBOW 10500230 | 90 | 16 | PVC | 0.074 | ||
4" | PVC ELBOW 10500235 | 90 | 16 | PVC | 1.225 |
