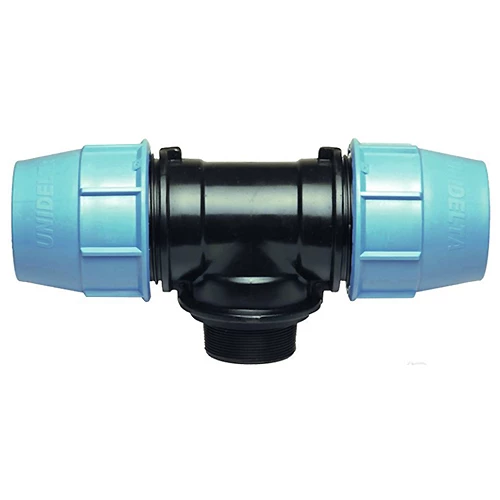

ALFA MALE TEE
Alpha compression fittings are specially designed to connect polyethylene pipes with an outside diameter from 16 to 110 mm.
They are fully compatible with all PELD, PEHD, PE40, PE80, and PE100 pipes that comply with EN 12201, ISO 4427, ISO 14236, ISO 13460, and DIN 8074.
They are typically used for conveying drinking water and liquids at pressures of up to 16 bar.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
| Dia. | Dia. 2 | Dia. (inch) | Name | Pressure Rating | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|---|---|
16 | 16 | 1/2" | ALFA MALE TEE 13010632 | 16 | PP (UV protected) | 0.066 | ||
16 | 16 | 3/4" | ALFA MALE TEE 13010633 | 16 | PP (UV protected) | 0.066 | ||
20 | 20 | 1/2" | ALFA MALE TEE 13010635 | 16 | PP (UV protected) | 0.113 | ||
20 | 20 | 3/4" | ALFA MALE TEE 13010640 | 16 | PP (UV protected) | 0.011 | ||
25 | 25 | 1/2" | ALFA MALE TEE 13010643 | 16 | PP (UV protected) | 0.126 | ||
25 | 25 | 3/4" | ALFA MALE TEE 13010645 | 16 | PP (UV protected) | 0.126 | ||
25 | 25 | 1" | ALFA MALE TEE 13010650 | 16 | PP (UV protected) | 0.162 | ||
32 | 32 | 1 1/4" | ALFA MALE TEE 13010663 | 16 | PP (UV protected) | 0.213 | ||
32 | 32 | 3/4" | ALFA MALE TEE 13010655 | 16 | PP (UV protected) | 0.177 | ||
32 | 32 | 1" | ALFA MALE TEE 13010660 | 16 | PP (UV protected) | 0.213 | ||
32 | 32 | 1/2" | ALFA MALE TEE 13010653 | 16 | PP (UV protected) | 0.177 | ||
40 | 40 | 1" | ALFA MALE TEE 13010665 | 16 | PP (UV protected) | 0.356 | ||
40 | 40 | 1 1/4" | ALFA MALE TEE 13010670 | 16 | PP (UV protected) | 0.403 | ||
40 | 40 | 1 1/2" | ALFA MALE TEE 13010675 | 16 | PP (UV protected) | 0.453 | ||
50 | 50 | 1 1/4" | ALFA MALE TEE 13010677 | 16 | PP (UV protected) | 0.602 |
