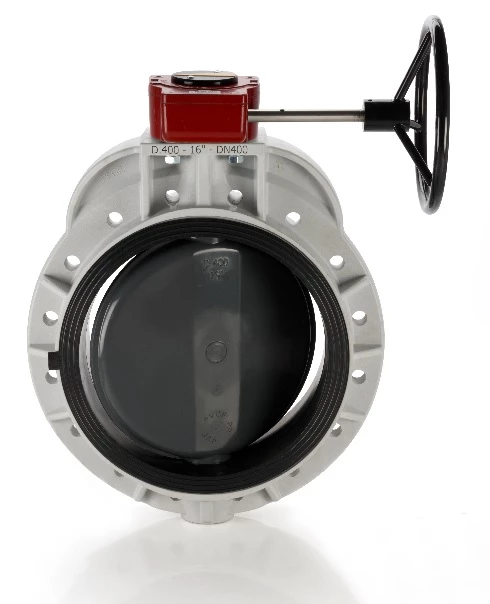

CEPEX PP-H (XTM) BUTTERFLY VALVE WITHOUT HANDLE - EPDM

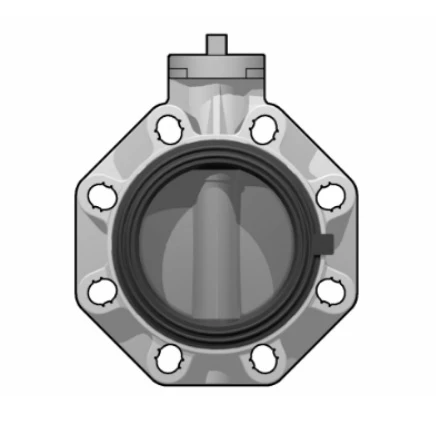

PP Butterfly valve with free shaft end
Housing in UV-stabilized glass-reinforced PP
Gasket in EPDM can be supplied with FPM gasket
PN 10 handle
Lug version on request
The polypropylene system can be used at temperatures up to 80° C
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
Pressure Rating
Has technical drawing
| Dia. | Dia. (inch) | Name | Pressure Rating | Weight per pcs | Diameter Span | ||
|---|---|---|---|---|---|---|---|
50 | 1 1/2" | CEPEX PP-H XTM BUTTERFLY VALVE- EPDM-BARE SHAFT 10540550 | 10 | 1.487 | |||
63 | 2" | CEPEX PP-H XTM BUTTERFLY VALVE- EPDM-BARE SHAFT 10540555 | 10 | 1.23 | 63.0 - 75.0 | ||
90 | 3" | CEPEX PP-H XTM BUTTERFLY VALVE- EPDM-BARE SHAFT 10540560 | 10 | 1.61 | |||
110 | 4" | CEPEX PP-H XTM BUTTERFLY VALVE- EPDM-BARE SHAFT 10540565 | 10 | 2.13 | |||
125 | 5" | CEPEX PP-H XTM BUTTERFLY VALVE- EPDM-BARE SHAFT 10540570 | 10 | 1.487 | 125.0 - 140.0 | ||
160 | 6" | CEPEX PP-H XTM BUTTERFLY VALVE- EPDM-BARE SHAFT 10540575 | 10 | 3.92 | |||
200 | 8" | CEPEX PP-H XTM BUTTERFLY VALVE- EPDM-BARE SHAFT 10540580 | 10 | 6.35 | 200.0 - 225.0 | ||
250 | 10" | CEPEX PP-H XTM BUTTERFLY VALVE- EPDM-BARE SHAFT 10540585 | 6 | 13 | 250.0 - 280.0 | ||
315 | 12" | CEPEX PP-H XTM BUTTERFLY VALVE- EPDM-BARE SHAFT 10540590 | 6 | 17.4 | |||
355 | FK BUTT.FLY DIN D355 PPH EPDM 10530428 | 7 | 23.315 | ||||
400 | FK BUTT.FLY DIN D400 PPH EPDM 10530429 | 6 | 38.76 |
