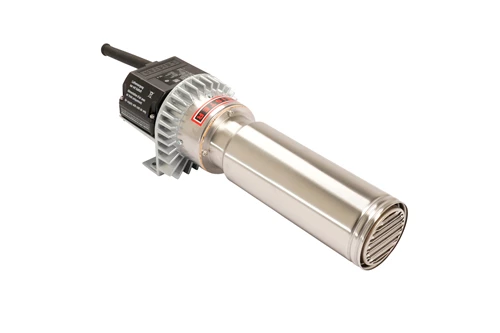

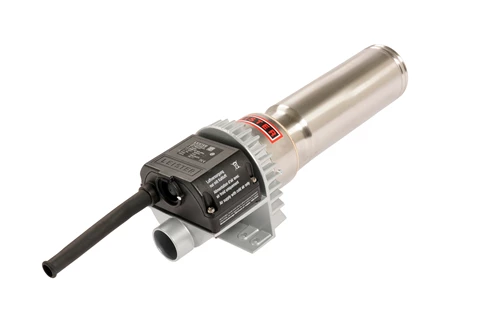

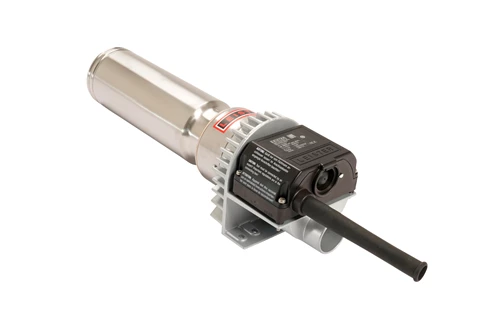

LEISTER LE 5000
Air heaters must always be supplied with air from either an air blower or a pressure-controlled compressed air system. For all models of air heaters, there is a wide range of accessories including temperature controllers, nozzles, reflectors and air hoses, etc. 3D drawings in various file formats are available for all models.
Check the documents to see which products are covered by the approvals.
| Name | Weight per pcs | ||
|---|---|---|---|
HEATER TYPE 5000, 220-230V/4-4.5KW, SEV APPROVED 40250005 | 2 | ||
HEATER TYPE 5000, 380-440V/5-6.5KW, SEV APPROVED 40250010 | 1.95 | ||
HEATER TYPE 5000, 380-440V/7.5-10KW, SEV APPROVED 40250015 | 1.899 | ||
HIGH TEMPERATURE HEATER 5000 HT (900°C/1650°F) 3 X 400V/11KW, WITHOUT ELECTRONICS 40250020 | 2.25 | ||
HEATER TYPE 5000, 3 X 400V/7.5KW, WITHOUT ELECTRONICS, WITH CONNECTION FLANGE ON BOTH SIDES, WITH MICA TUBE, WITH 5M SILICON CABLE 40250025 | 1.9 | ||
HEATER TYPE 5000, 3 X 230V/8KW, WITHOUT ELECTRONICS, WITH CONNECTION FLANGE ON BOTH SIDES, WITH MICA TUBE, WITH 5M SILICON CABLE, HEATING ELEMENT BEVELLED 40250030 | 1.9 | ||
SEALING UNIT COMPLETE, WITH LE 5000 DF-HT 3X400V/7.5KW, WITH INSULATIUON AND PROTECTION SHEET, AIRFLOW-U-TYPE II 40250035 | 8.3 | ||
SEALING UNIT COMPLETE, WITH LE 5000 DF-HT 3X400V/7.5KW, WITH INSULATIUON AND PROTECTION SHEET, AIRFLOW-S-TYPE II 40250040 | 8.3 | ||
HEATER TYPE 5000, 3 X 400V/4.5KW, WITHOUT ELECTRONICS, WITH CONNECTION FLANGE ON BOTH SIDES, WITH MICA TUBE, WITH 5M SILICON CABLE 40250045 | 2.6 | ||
HEATER TYPE 5000, 3 X 400V/6.5KW, WITHOUT ELECTRONICS, WITH CONNECTION FLANGE ON BOTH SIDES, WITH MICA TUBE, WITH 5M SILICON CABLE, SEALED 40250050 | 1.9 | ||
AIR HEATER LE 5000 DF-R, 3X400V/4.5K, WITH 1M HIGH TEMPERATURE CABLE 40250055 | 2 | ||
AIR HEATER LE 5000 DF-R, 3X230V/8KW, WITH 1M HIGH TEMPERATURE CABLE 40250060 | 2 | ||
AIR HEATER LE 5000 DF-R, 3X400V/6.5KW 40250065 | 2 | ||
AIR HEATER LE 5000 DF-R, 3X400V/7.5, WITH 1M HIGH TEMPERATURE CABLE 40250070 | 2 | ||
AIR HEATER LE 5000 DF HT, 3X400V/7.5KW 40250075 | 3.135 |
