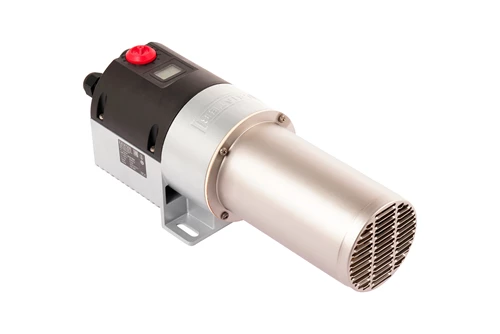

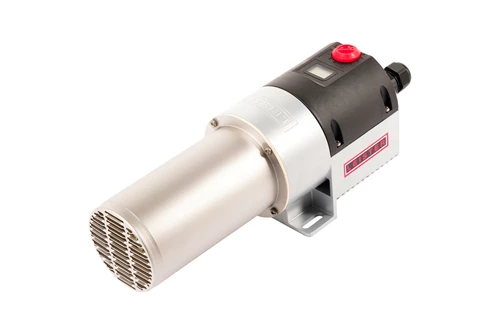

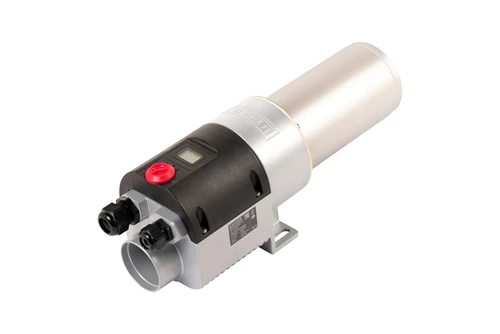

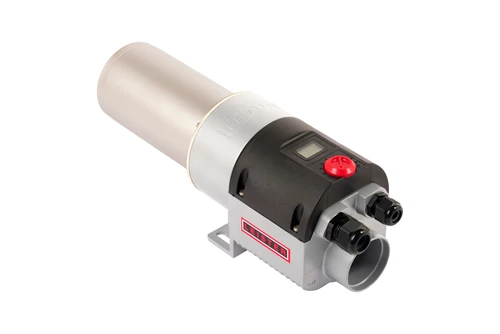

LEISTER LHS 61L SYSTEM

The LHS 61 air heater series is the first choice when high performance is required in applications. Alongside its optimized heating element design and traditional Leister quality, the patented heating element cover guarantees yet another increase to the service life of the heating element. The air outlet diameter of 92 mm (3.62 in) allows high air volumes with up to 16kW of power. The LHS 61L SYSTEM allows a very simple control of the current and target temperature through an integrated temperature probe, integrated controller or interface.
The integrated power electronics and simplified wiring make external power controls a thing of the past. Nevertheless, upon request, the LHS 61L SYSTEM can be connected to PLC control systems via the analog interface with 4 – 20 mA or 0 – 10 V.

Check the documents to see which products are covered by the approvals.

  • Variants
  • Video
  • Alternative Products
  • Spare Parts
NameWeight per pcs
LHS 61L SYSTEM, 3 x 400V/11kW 40320005
3.65
LHS 61L SYSTEM, 3 x 400V/16kW 40320010
4.55
LHS 61L SYSTEM, 3 x 230V/8kW 40320080
3.75
LHS 61L SYSTEM, 3 x 230V/10kW 40320085
3.75
LHS 61L SYSTEM, 3 x 400V/5kW 40320090
3.657
LHS 61L SYSTEM, 3 x 400V/8kW 40320095
3.75
LHS 61L SYSTEM, 3 x 480V/8kW 40320100
3.75
LHS 61L SYSTEM, 3 x 480V/11kW 40320105
3.75
