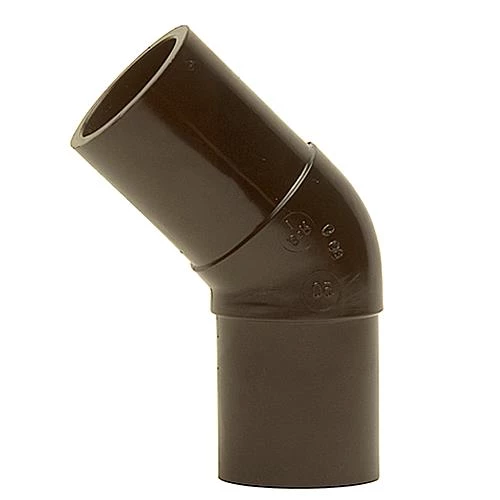

30° LONG BEND, SDR17
The long spigot elbow in SDR17 wall thickness is a flexible and reliable component for pressure pipe installations where high durability and performance are required. The bend is suitable for both butt welding and electrofusion, providing the installer with great flexibility and efficiency when assembling PE piping systems.
The bend is approved for an operating pressure of up to 10 bar for water and 6 bar for gas, making it ideal for use in both water supply and gas distribution.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
Has technical drawing
| Dia. | Name | Angle | Pressure Rating | SDR | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|---|---|
75 | LONG. ELBOW 13112750 | 30 | 10 | 17 | PE100 | 0.3 | ||
90 | LONG. ELBOW 13112760 | 30 | 10 | 17 | PE100 | 0.46 | ||
110 | LONG. ELBOW 13112770 | 30 | 10 | 17 | PE100 | 0.7 | ||
125 | LONG. ELBOW 13112780 | 30 | 10 | 17 | PE100 | 1.02 | ||
140 | LONG. ELBOW 13112790 | 30 | 10 | 17 | PE100 | 1.28 | ||
160 | LONG. ELBOW 13112800 | 30 | 10 | 17 | PE100 | 1.89 | ||
180 | LONG. ELBOW 13112810 | 30 | 10 | 17 | PE100 | 2.3 | ||
200 | LONG. ELBOW 13112820 | 30 | 10 | 17 | PE100 | 3.06 | ||
225 | LONG. ELBOW 13112830 | 30 | 10 | 17 | PE100 | 4.19 | ||
250 | LONG. ELBOW 13112837 | 30 | 10 | 17 | PE100 | 6.39 | ||
280 | LONG. ELBOW 13112845 | 30 | 10 | 17 | PE100 | 7.91 | ||
315 | LONG. ELBOW 13112855 | 30 | 10 | 17 | PE100 | 10.62 |
