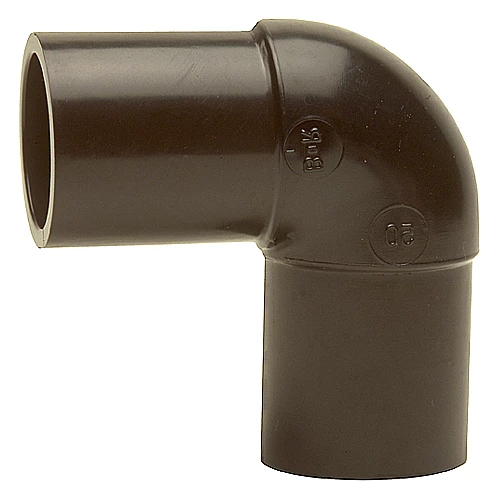

90° LONG ELBOW, SDR17
The butt/electrofusion elbow in SDR11 wall thickness is a flexible and reliable component for pressure pipe installations where high durability and performance are required. The bend is suitable for both butt welding and electrofusion, providing the installer with great flexibility and efficiency when assembling PE piping systems.
The bend is approved for an operating pressure of up to 10 bar for water and 6 bar for gas, making it ideal for use in both water supply and gas distribution.
The DK-Vand approval only applies to SIMONA products that are described in the approval.
Certificates
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
Has technical drawing
| Dia. | Name | Angle | Pressure Rating | SDR | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|---|---|
50 | LONG ELBOW 13110048 | 90 | 10 | 17 | PE100 | 0.105 | ||
63 | LONG ELBOW 13110055 | 90 | 10 | 17 | PE100 | 0.19 | ||
75 | LONG ELBOW 13110065 | 90 | 10 | 17 | PE100 | 0.287 | ||
90 | LONG ELBOW 13110075 | 90 | 10 | 17 | PE100 | 0.465 | ||
110 | LONG ELBOW 13110085 | 90 | 10 | 17 | PE100 | 0.765 | ||
125 | LONG ELBOW 13110095 | 90 | 10 | 17 | PE100 | 1.03 | ||
140 | LONG ELBOW 13110105 | 90 | 10 | 17 | PE100 | 1.61 | ||
160 | LONG ELBOW 13110115 | 90 | 10 | 17 | PE100 | 2.375 | ||
180 | LONG ELBOW 13110125 | 90 | 10 | 17 | PE100 | 3.035 | ||
200 | LONG ELBOW 13110135 | 90 | 10 | 17 | PE100 | 4.23 | ||
225 | LONG ELBOW 13110145 | 90 | 10 | 17 | PE100 | 5.63 | ||
250 | LONG ELBOW 13110155 | 90 | 10 | 17 | PE100 | 7.8 | ||
280 | LONG ELBOW 13110165 | 90 | 10 | 17 | PE100 | 9 | ||
315 | LONG ELBOW 13110175 | 90 | 10 | 17 | PE100 | 12 | ||
355 | LONG ELBOW 13110182 | 90 | 10 | 17 | PE100 | 22.7 |
