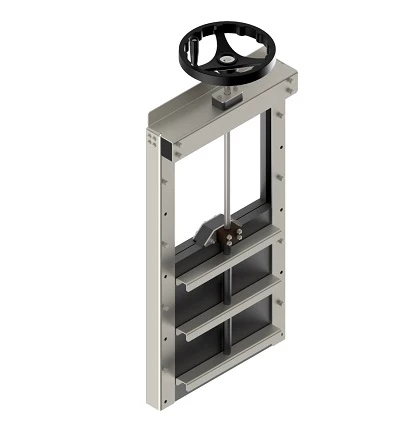

PL-PENSTOCK-B - AISI316 - W/ HANDWHEEL - ROUND OPENING
PL-Penstock-B is a unique penstock that can be widely used within fish farms, process water, wastewater and surface water. The penstock is in corrosion-free materials and leak free from both directions. The penstock is with non-rising spindle, which makes it easy to manually adjust and position the penstock plate. The penstock comes standard with a gasket for sealing between wall and the penstock frame.
Simple and proven design, with many options for accessories. After manufacturing, all steel components are finished with pickling for optimal corrosion resistance. The penstock is fitted with an extra strong spindle nut, which ensures a long life of wear parts in the penstock.
Maximum pressure front: 4 mVs
Maximum pressure back: 4 mVs
Pressure rates can be adjusted with extra reinforcement steel.
This model comes with a circular opening on the backplate, this opening can be adjusted according to the costumers wish.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
| Dia. | Name | ||
|---|---|---|---|
160 | PL-PENSTOCK-B - AISI316 - W/ HANDWHEEL 76000005 | ||
200 | PL-PENSTOCK-B - AISI316 - W/ HANDWHEEL 76000010 | ||
250 | PL-PENSTOCK-B - AISI316 - W/ HANDWHEEL 76000015 | ||
315 | PL-PENSTOCK-B - AISI316 - W/ HANDWHEEL 76000020 | ||
355 | PL-PENSTOCK-B - AISI316 - W/ HANDWHEEL 76000025 | ||
400 | PL-PENSTOCK-B - AISI316 - W/ HANDWHEEL 76000030 | ||
450 | PL-PENSTOCK-B - AISI316 - W/ HANDWHEEL 76000035 | ||
500 | PL-PENSTOCK-B - AISI316 - W/ HANDWHEEL 76000040 | ||
560 | PL-PENSTOCK-B - AISI316 - W/ HANDWHEEL 76000045 | ||
630 | PL-PENSTOCK-B - AISI316 - W/ HANDWHEEL 76000050 | ||
710 | PL-PENSTOCK-B - AISI316 - W/ HANDWHEEL 76000055 |
