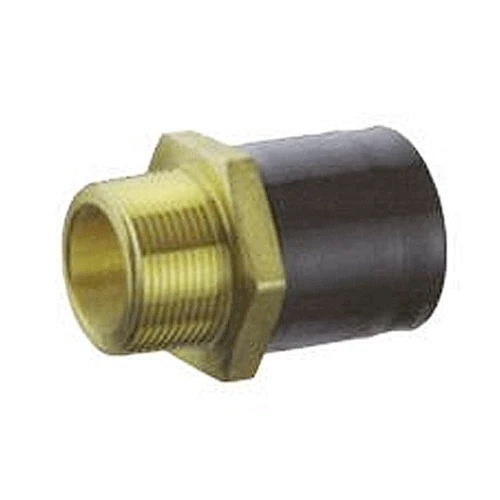

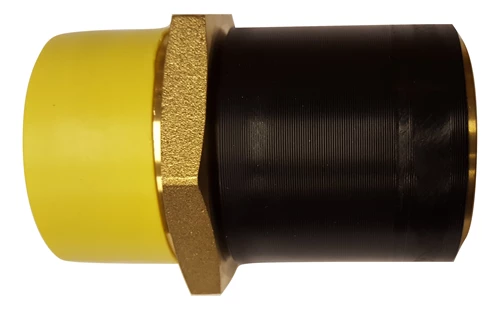

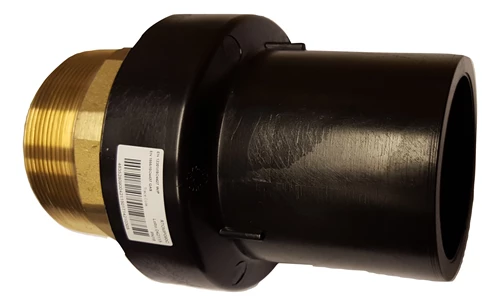

PLASSON ELECTRO FUSION ADAPTOR MALE/MALE

The PLASSON male threaded transition is a fitting designed to connect a PE pipe to a component with a female thread, such as a valve or a fitting made of metal or plastic.

The thread is made of brass, a material particularly well-suited for threaded connections. Brass offers high mechanical strength, excellent wear resistance, and is less prone to deformation compared to softer plastics. This ensures that the thread maintains its shape and sealing ability, even with repeated use or when subjected to the stress of connection with metal components.



NOTE – This fitting is not suitable for butt welding and is intended for use with electrofusion welding only.

Check the documents to see which products are covered by the approvals.

Diameter (mm)
Has technical drawing
Dia.Dia. (inch)NamePressure RatingSub materialWeight per pcs
25
3/4"
PLASSON ELECTROFUSION ADAPTOR MALE THREAD, MALE/MALE 13101655
16PE1000.112
32
3/4"
PLASSON ELECTROFUSION ADAPTOR MALE THREAD, MALE/MALE 13101665
16PE1000.1785
32
1"
PLASSON ELECTROFUSION ADAPTOR MALE THREAD, MALE/MALE 13101670
16PE1000.171
32
1 1/4"
PLASSON ELECTROFUSION ADAPTOR MALE THREAD, MALE/MALE 13101675
16PE1000.323
50
1"
PLASSON ELECTROFUSION ADAPTOR MALE THREAD, MALE/MALE 13101705
16PE1000.37
50
1 1/4"
PLASSON ELECTROFUSION ADAPTOR MALE THREAD, MALE/MALE 13101710
16PE1000.42
50
1 1/2"
PLASSON ELECTROFUSION ADAPTOR MALE THREAD, MALE/MALE 13101715
16PE1000.348
50
2"
PLASSON ELECTROFUSION ADAPTOR MALE THREAD, MALE/MALE 13101720
16PE1000.6
