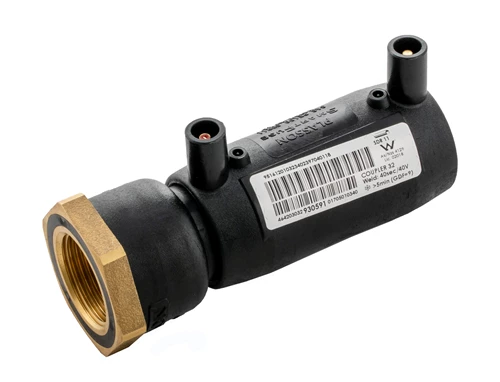

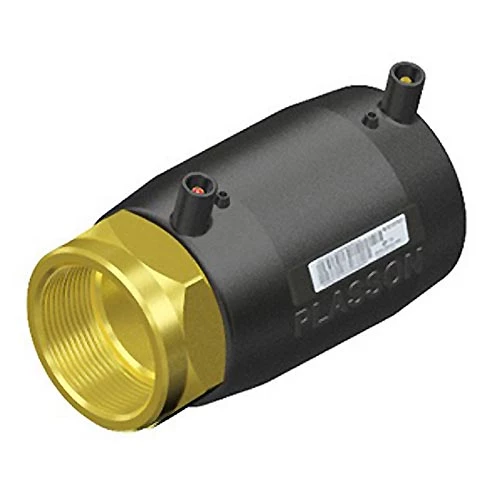

PLASSON ELECTRO FUSION FEMALE ADAPTOR
PLASSON Electrofusion Female Threaded Transition is a fitting that allows the connection of a PE pipe to a component with a male thread, such as a valve or a fitting made of metal or plastic.
The thread is made of brass, which is a particularly suitable material for threaded connections.
Brass offers high mechanical strength, good wear resistance, and is less prone to deformation compared to softer types of plastic. This ensures that the thread retains its shape and seal integrity, even under repeated use or when subjected to stress from connections with metal components.
NOTE – This fitting is not suitable for butt welding and is intended for use with electrofusion welding only.
Check the documents to see which products are covered by the approvals.
| Dia. | Dia. (inch) | Name | Pressure Rating | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|---|
20 | 1/2" | PLASSON ELECTROFUSION ADAPTOR FEMALE THREAD 13100587 | 16 | PE100 | 0.13 | ||
25 | 3/4" | PLASSON ELECTROFUSION ADAPTOR FEMALE THREAD 13100588 | 16 | PE100 | 0.15 | ||
25 | 1" | PLASSON ELECTROFUSION ADAPTOR FEMALE THREAD 13100588-1 | 16 | PE100 | 0.16 | ||
32 | 3/4" | PLASSON ELECTROFUSION ADAPTOR FEMALE THREAD 13100589 | 16 | PE100 | 0.26 | ||
32 | 1" | PLASSON ELECTROFUSION ADAPTOR FEMALE THREAD 13100590 | 16 | PE100 | 0.51 | ||
32 | 1 1/4" | PLASSON ELECTROFUSION ADAPTOR FEMALE THREAD 13100591 | 16 | PE100 | 0.46 | ||
32 | 1 1/2" | PLASSON ELECTROFUSION ADAPTOR FEMALE THREAD 13100592 | 16 | PE100 | 0.51 | ||
40 | 1" | PLASSON ELECTROFUSION ADAPTOR FEMALE THREAD 13100593 | 16 | PE100 | 0.41 | ||
40 | 1 1/4" | PLASSON ELECTROFUSION ADAPTOR FEMALE THREAD 13100595 | 16 | PE100 | 0.42 | ||
40 | 1 1/2" | PLASSON ELECTROFUSION ADAPTOR FEMALE THREAD 13100600 | 16 | PE100 | 0.82 | ||
40 | 2" | PLASSON ELECTROFUSION ADAPTOR FEMALE THREAD 13100602 | 16 | PE100 | |||
50 | 1 1/2" | PLASSON ELECTROFUSION ADAPTOR FEMALE THREAD 13100605 | 16 | PE100 | 0.49 | ||
50 | 2" | PLASSON ELECTROFUSION ADAPTOR FEMALE THREAD 13100607 | 16 | PE100 | 0.69 | ||
63 | 1 1/2" | PLASSON ELECTROFUSION ADAPTOR FEMALE THREAD 13100610 | 16 | PE100 | 0.56 | ||
63 | 2" | PLASSON ELECTROFUSION ADAPTOR FEMALE THREAD 13100615 | 16 | PE100 | 0.88 |
