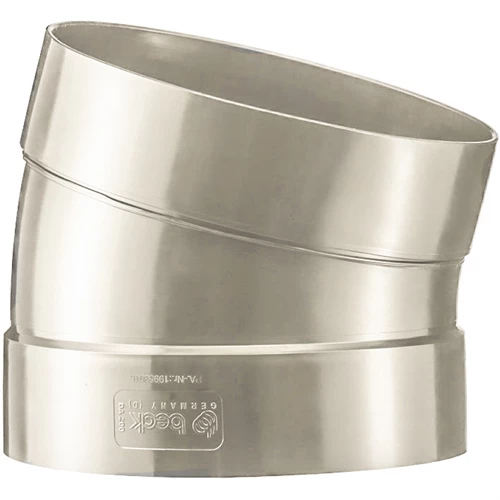

15° PP VENTILATION BEND - GREY RAL 7032

PP ventilations 15° bend with sockets. Assembled with threadwelding.

Check the documents to see which products are covered by the approvals.

Dia.	Name	Angle	Sub material	Weight per pcs
50	PP TUBULAR BEND - GREY RAL 7032 11060300	15	PP	0.1
63	PP TUBULAR BEND - GREY RAL 7032 11060305	15	PP	0.1
75	PP TUBULAR BEND - GREY RAL 7032 11060310	15	PP	0.1
90	PP TUBULAR BEND - GREY RAL 7032 11060315	15	PP	0.1
100	PP TUBULAR BEND - GREY RAL 7032 11060425	15	PP	16.8
110	PP TUBULAR BEND - GREY RAL 7032 11060320	15	PP	0.2
125	PP TUBULAR BEND - GREY RAL 7032 11060325	15	PP	0.2
140	PP TUBULAR BEND - GREY RAL 7032 11060330	15	PP	0.2
160	PP TUBULAR BEND - GREY RAL 7032 11060335	15	PP	0.2
180	PP TUBULAR BEND - GREY RAL 7032 11060340	15	PP	0.3
200	PP TUBULAR BEND - GREY RAL 7032 11060345	15	PP	0.4
225	PP TUBULAR BEND - GREY RAL 7032 11060350	15	PP	0.5
250	PP TUBULAR BEND - GREY RAL 7032 11060355	15	PP	0.5
280	PP TUBULAR BEND - GREY RAL 7032 11060360	15	PP	0.7
315	PP TUBULAR BEND - GREY RAL 7032 11060365	15	PP	1
