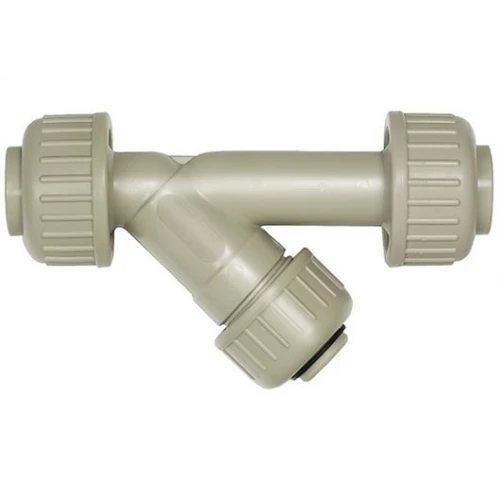

PP FILTER
PPH sediment strainer, designed to remove particles from liquids in pressurized systems. The valve is available in sizes from DN15 to DN100 and is pressure rated up to PN10 at 20 °C, depending on the dimension.
It withstands temperatures up to 100 °C and is supplied with either EPDM or FKM seals. The filter element is removable for easy cleaning and maintenance, with mesh sizes ranging from 889 to 1016 µm.
RVIM is suitable for water treatment, industrial installations, and process systems.
Check the documents to see which products are covered by the approvals.
Diameter (mm)
Pressure Rating
| Dia. | Name | Pressure Rating | Weight per pcs | ||
|---|---|---|---|---|---|
20 | PP STRAINER - 0,STRAINER, PN10 10538450 | 10 | 0.148 | ||
25 | PP STRAINER - 0,STRAINER, PN10 10538455 | 10 | 0.195 | ||
32 | PP STRAINER - 0,STRAINER, PN10 10538460 | 10 | 0.297 | ||
40 | PP STRAINER - 0,STRAINER, PN10 10538465 | 10 | 0.5225 | ||
50 | PP STRAINER - 0,STRAINER, PN10 10538470 | 10 | 0.675 | ||
63 | PP STRAINER - 0,STRAINER, PN10 10538475 | 10 | 1.1 | ||
75 | PP STRAINER - 0,STRAINER, PN6 10538480 | 6 | 1.58 | ||
90 | PP STRAINER - 0,STRAINER, PN4 10538485 | 4 | 1.92 | ||
110 | PP STRAINER - 0,STRAINER, PN4 10538490 | 4 | 3 |
