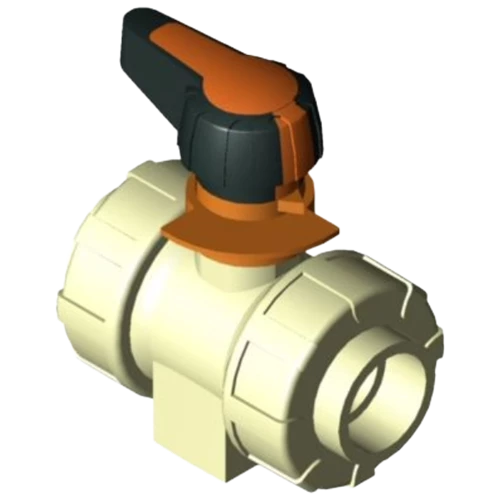

PP PROPORTIONAL BALL VALVE F/F - PN10
Stübbe PP proportional ball valve is a control valve designed for precise fluid flow regulation, utilizing a specially machined ball that enables smooth and accurate adjustment.
Constructed from polypropylene (PP), the valve offers excellent chemical resistance and is ideal for use in applications such as chemical processing, wastewater treatment, and industrial dosing systems. It is suitable for temperatures up to approximately 80 °C and features socket ends for solvent-free welding (fusion socket welding or butt welding, depending on the design). The valve is available with manual operation and can also be fitted with a pneumatic or electric actuator.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
| Dia. | Name | Pressure Rating | Weight per pcs | ||
|---|---|---|---|---|---|
16 | PP PROPORTIONAL BALL VALVE C200 - PN10 10540150 | 10 | 0.128 | ||
20 | PP PROPORTIONAL BALL VALVE C200 - PN10 10540155 | 10 | 0.128 | ||
25 | PP PROPORTIONAL BALL VALVE C200 - PN10 10540160 | 10 | 0.209 | ||
32 | PP PROPORTIONAL BALL VALVE C200 - PN10 10540165 | 10 | 0.296 | ||
40 | PP PROPORTIONAL BALL VALVE C200 - PN10 10540170 | 10 | 0.525 | ||
50 | PP PROPORTIONAL BALL VALVE C200 - PN10 10540175 | 10 | 0.702 | ||
63 | PP PROPORTIONAL BALL VALVE C200 - PN10 10540180 | 10 | 1.302 |
