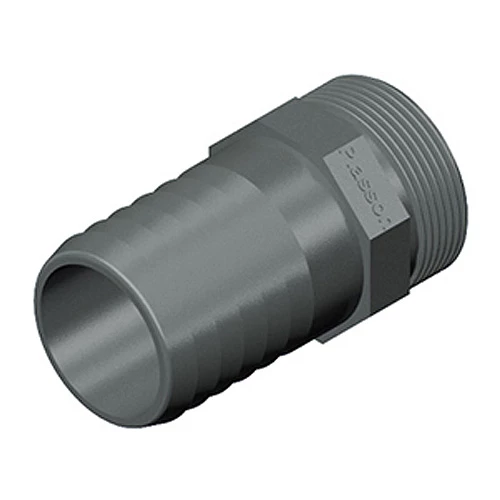

PVC HOSE NOZZLE THREADED
PVC threaded fittings is suitable for installations up to 16 bar (at 20°C) for transport of fluids for example irrigation, industry and swimmingpool installations. PVC threaded fittings is produced according to international standards including ISO264, 727, 2536, 3460, KIWA Criteria Std. No. 54 and DIN8063, 19532, UNI EN 1452-3, AFNOR 54-029 and 54-028. Color is grey according to standards. PVC threaded fittings is joined using PTFE tape.
Check the documents to see which products are covered by the approvals.
Diameter (mm)
Pressure Rating
Has technical drawing
| Dia. | Dia. 2 | Dia. (inch) | Name | Pressure Rating | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|---|---|
18 | 1/2" | PVC HOSE ADAPTOR 10501768 | 10 | PVC | 0.016 | |||
20 | 1/2" | PVC HOSE ADAPTOR 10501770 | 16 | PVC | 0.017 | |||
20 | 3/4" | PVC HOSE ADAPTOR 10501775 | 16 | PVC | 0.03 | |||
25 | 3/4" | PVC HOSE ADAPTOR 10501776 | 16 | PVC | 0.024 | |||
25 | 1" | PVC HOSE ADAPTOR 10501779 | 16 | PVC | 0.032 | |||
30 | 1" | PVC HOSE ADAPTOR 10501780 | 16 | PVC | 0.038 | |||
32 | 38 | 1 1/2" | PVC HOSE ADAPTOR 10501792 | 16 | PVC | 0.098 | ||
40 | 1 1/4" | PVC HOSE ADAPTOR 10501785 | 16 | PVC | 0.07 | |||
40 | 1 1/2" | PVC HOSE ADAPTOR 10501788 | 10 | PVC | 0.097 | |||
50 | 1 1/2" | PVC HOSE ADAPTOR 10501790 | 16 | PVC | 0.107 | |||
1/4" | PVC HOSE ADAPTOR 10501763 | 16 | PVC | 0.011 | ||||
3/8" | PVC HOSE ADAPTOR 10501765 | 16 | PVC | 0.012 | ||||
2" | PVC HOSE ADAPTOR 10501795 | 16 | PVC | 0.152 |
