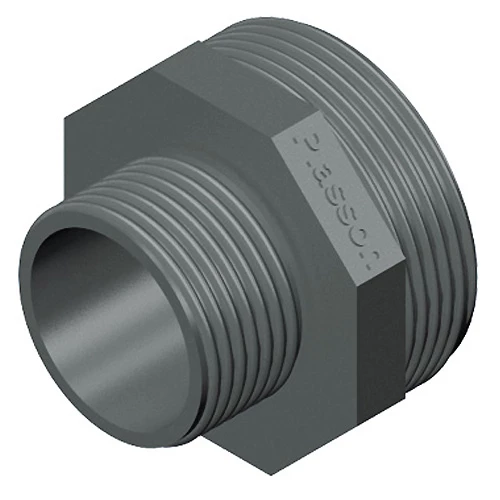

PVC REDUCING NIPPLE
PVC threaded fittings is suitable for installations up to 16 bar (at 20°C) for transport of fluids for example irrigation, industry and swimmingpool installations. PVC threaded fittings is produced according to international standards including ISO264, 727, 2536, 3460, KIWA Criteria Std. No. 54 and DIN8063, 19532, UNI EN 1452-3, AFNOR 54-029 and 54-028. Color is grey according to standards. PVC threaded fittings is joined using PTFE tape.
Check the documents to see which products are covered by the approvals.
Pressure Rating
Has technical drawing
| Dia. (inch) | Name | Pressure Rating | Dia. 2 (inch) | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|---|
3/8" | PVC REDUCING NIPPLE 10501403 | 16 | 1/4" | PVC | 0.007 | ||
1/2" | PVC REDUCING NIPPLE 10501401 | 16 | 3/8" | PVC | 0.01 | ||
3/4" | PVC REDUCING NIPPLE 10501401-1 | 16 | 3/8" | PVC | 0.011 | ||
3/4" | PVC REDUCING NIPPLE 10501402 | 16 | 1/2" | PVC | 0.019 | ||
1" | PVC REDUCING NIPPLE 10501404 | 16 | 1/2" | PVC | 0.03 | ||
1" | PVC REDUCING NIPPLE 10501405 | 16 | 3/4" | PVC | 0.03 | ||
1 1/4" | PVC REDUCING NIPPLE 10501410 | 16 | 1/4" | PVC | 0.059 | ||
1 1/2" | PVC REDUCING NIPPLE 10501412 | 10 | 1" | PVC | 0.079 | ||
1 1/2" | PVC REDUCING NIPPLE 10501415 | 16 | 1 1/4" | PVC | 0.061 | ||
1 1/2" | PVC REDUCING NIPPLE 10501411 | 16 | 3/4" | PVC | 0.011 | ||
2" | PVC REDUCING NIPPLE 10501417 | 16 | 1" | PVC | 0.093 | ||
2" | PVC REDUCING NIPPLE 10501419 | 16 | 1 1/4" | PVC | 0.093 | ||
2" | PVC REDUCING NIPPLE 10501420 | 16 | 1 1/2" | PVC | 0.172 | ||
2 1/2" | PVC REDUCING NIPPLE 10501425 | 16 | 2" | PVC | 0.177 | ||
2 1/2" | PVC REDUCING NIPPLE 10501423 | 16 | 1 1/4" | PVC | 0.011 |
