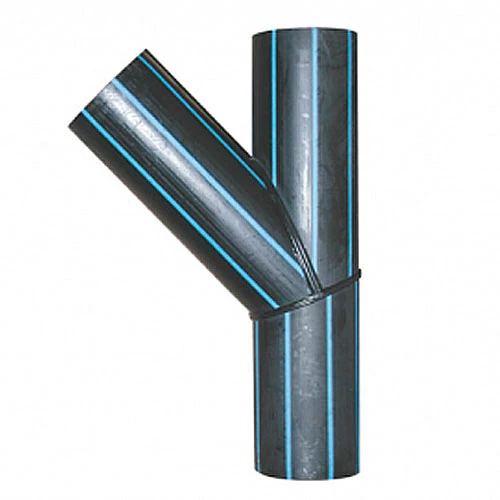

45° PE100 LONG SEGMENT WELDED TEE, SDR17

The segment-welded 45° T-piece in PE100 is a robust and reliable solution for installations that require high strength and tightness. This T-piece is made from PE100, a high-quality polyethylene material that provides excellent resistance to both mechanical and chemical influences. The T-pieces are supplied as standard in SDR17 and are completely black, which gives them high resistance to UV radiation, making them ideal for both indoor and outdoor installations.

The T-piece is segment-welded, meaning it is composed of segments that are welded together to create a strong and tight connection between the three pipe sections. This welding method ensures high precision and durability, making the T-piece perfect for both pressure pipelines and other applications.

With a safety factor of 0.6, the segment-welded T-piece in SDR17 is designed to withstand a maximum pressure of 6 bar, making it ideal for many pressurized systems where both stability and safety are critical.

The most commonly used assembly techniques are:

• Butt fusion welding: A method where pipes and fittings are melted together under high heat, creating a strong and tight joint. This is the primary method for assembling segment-welded fittings.
• Electrofusion welding: Can be used to join pipes and fittings with an integrated electrofusion function. This method provides a tight and reliable connection without the need for additional gaskets or seals.
•

There is also the option for custom orders with adjustments such as bead removal and color change, allowing the 45 degree T-piece to be tailored to specific requirements and installations.
