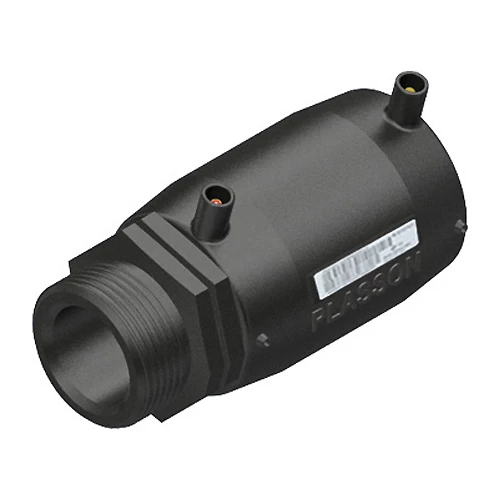

PLASSON ELECTRO FUSION MALE ADAPTOR - PE THREAD
PLASSON Electrofusion Male Threaded Transition is a fitting that allows the connection of a PE pipe to a component with a female thread, such as a valve or a fitting made of metal or plastic.
The thread is made of PE (polyethylene).
We do not recommend connecting metal components to a PE thread.
All fittings are supplied with 4.0 mm pins and are suitable for use with PE80, PE100, and PE100-RC
Check the documents to see which products are covered by the approvals.
Diameter (mm)
Has technical drawing
| Dia. | Dia. (inch) | Name | Pressure Rating | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|---|
20 | 1/2" | PLASSON ELECTROFUSION ADAPTOR MALE THREAD (PE THREAD) 13100538-1 | 16 | PE100 | 0.13 | ||
25 | 3/4" | PLASSON ELECTROFUSION ADAPTOR MALE THREAD (PE THREAD) 13100539-1 | 16 | PE100 | 0.06 | ||
32 | 1" | PLASSON ELECTROFUSION ADAPTOR MALE THREAD (PE THREAD) 13100541 | 16 | PE100 | 0.09 | ||
40 | 1" | PLASSON ELECTROFUSION ADAPTOR MALE THREAD (PE THREAD) 13100546 | 16 | PE100 | 0.15 | ||
40 | 1 1/4" | PLASSON ELECTROFUSION ADAPTOR MALE THREAD (PE THREAD) 13100550-1 | 16 | PE100 | 0.15 | ||
40 | 1 1/2" | PLASSON ELECTROFUSION ADAPTOR MALE THREAD (PE THREAD) 13100556 | 16 | PE100 | 0.16 | ||
50 | 1 1/2" | PLASSON ELECTROFUSION ADAPTOR MALE THREAD (PE THREAD) 13100571 | 16 | PE100 | 0.24 | ||
63 | 1 1/2" | PLASSON ELECTROFUSION ADAPTOR MALE THREAD (PE THREAD) 13100576 | 16 | PE100 | 0.37 | ||
63 | 2" | PLASSON ELECTROFUSION ADAPTOR MALE THREAD (PE THREAD) 13100581 | 16 | PE100 | 0.45 |
