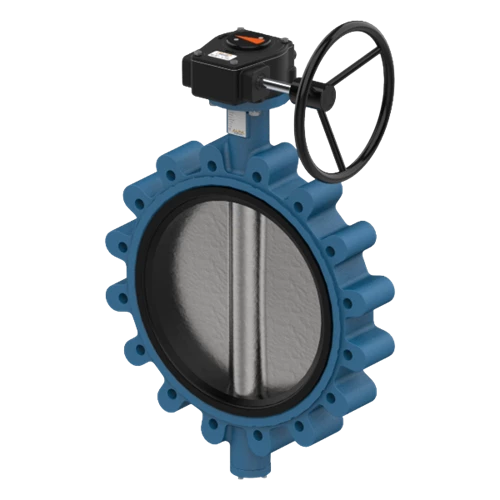

STEEL BUTTERFLYVALVE LUG WITH GEAR GASKET EPDM, DISK IN STAINLESS STEEL
Certificates
Check the documents to see which products are covered by the approvals.
Diameter (mm)
| Dia. | Name | Weight per pcs | ||
|---|---|---|---|---|
50 | 50 MM DN40 STEEL BUTTERFLYVALVE LUG WITH GEAR GASKET EPDM, DISK IN STAINLESS STEEL 10547925 | 3.6 | ||
63 | 63 MM DN50 STEEL BUTTERFLYVALVE LUG WITH GEAR GASKET EPDM, DISK IN STAINLESS STEEL 10547930 | 4.8 | ||
75 | 75 MM DN65 STEEL BUTTERFLYVALVE LUG WITH GEAR GASKET EPDM, DISK IN STAINLESS STEEL 10547935 | 5.5 | ||
90 | 90 MM DN80 STEEL BUTTERFLYVALVE LUG WITH GEAR GASKET EPDM, DISK IN STAINLESS STEEL 10547940 | 6.5 | ||
110 | 110 MM DN100 STEEL BUTTERFLYVALVE LUG WITH GEAR GASKET EPDM, DISK IN STAINLESS STEEL 10547945 | 8.3 | ||
140 | 140 MM DN125 STEEL BUTTERFLYVALVE LUG WITH GEAR GASKET EPDM, DISK IN STAINLESS STEEL 10547950 | 11.4 | ||
160 | 160 MM DN150 STEEL BUTTERFLYVALVE LUG WITH GEAR GASKET EPDM, DISK IN STAINLESS STEEL 10547955 | 11.7 | ||
225 | 225 MM DN200 STEEL BUTTERFLYVALVE LUG WITH GEAR GASKET EPDM, DISK IN STAINLESS STEEL 10547960 | 18.7 | ||
280 | 280 MM DN250 STEEL BUTTERFLYVALVE LUG WITH GEAR GASKET EPDM, DISK IN STAINLESS STEEL 10547965 | 33.2 | ||
315 | 315 MM DN300 STEEL BUTTERFLYVALVE LUG WITH GEAR GASKET EPDM, DISK IN STAINLESS STEEL 10547970 | 44.8 | ||
355 | 355 MM DN350 STEEL BUTTERFLYVALVE LUG WITH GEAR GASKET EPDM, DISK IN STAINLESS STEEL 10547975 | 68.4 | ||
400 | 400 MM DN400 STEEL BUTTERFLYVALVE LUG WITH GEAR GASKET EPDM, DISK IN STAINLESS STEEL 10547980 | 89.2 | ||
450 | 450 MM DN450 STEEL BUTTERFLYVALVE LUG WITH GEAR GASKET EPDM, DISK IN STAINLESS STEEL 10547985 | 126 | ||
500 | 500 MM DN500 STEEL BUTTERFLYVALVE LUG WITH GEAR GASKET EPDM, DISK IN STAINLESS STEEL 10547990 | 167 | ||
630 | 630 MM DN600 STEEL BUTTERFLYVALVE LUG WITH GEAR GASKET EPDM, DISK IN STAINLESS STEEL 10547995 | 210.7 |
