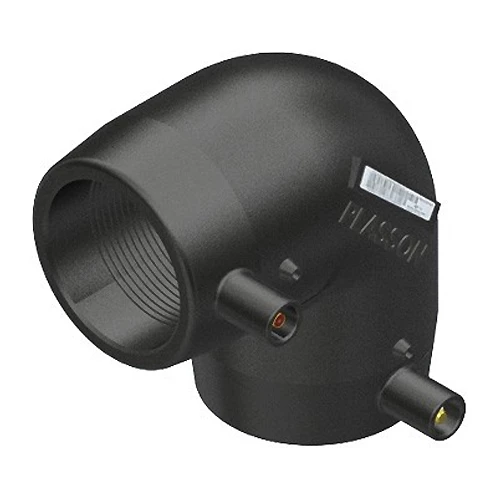

90° PLASSON ELECTRO FUSION ELBOW
Plasson's high-quality electrofusion 90° elbow is a reliable and efficient solution for joining PE pipes in pressurized systems. Designed for durability and ease of installation, this elbow ensures secure connections that meet the demands of various applications.
Manufactured from PE100 material, the coupler is compatible with PE80, PE100, and PE100-RC pipes.
The elbow is black and designed to withstand temperatures between -20°C and +60°C. It is rated for a maximum water pressure of 16 bar and a gas pressure of 10 bar
Plasson electrofusion fittings are equipped with an integrated Smartfuse system, facilitating easy installation with minimal risk of errors. Each fitting comes with a label displaying a barcode for welding and traceability, along with information about cooling time and compatibility with specific SDR pipe classes.
These couplers adhere to various standards, including Nordic Polymark, DK-Vand, EN12201, EN1555, NF 136, and ISO 9001, ensuring their reliability and quality.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
| Dia. | Name | Angle | Pressure Rating | SDR | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|---|---|
20 | PLASSON. ELECTROFUSION ELBOW 13100005 | 90 | 16 | 11 | PE100 | 0.07 | ||
25 | PLASSON. ELECTROFUSION ELBOW 13100010 | 90 | 16 | 11 | PE100 | 0.05 | ||
32 | PLASSON. ELECTROFUSION ELBOW 13100015 | 90 | 16 | 11 | PE100 | 0.09 | ||
40 | PLASSON. ELECTROFUSION ELBOW 13100020 | 90 | 16 | 11 | PE100 | 0.14 | ||
50 | PLASSON. ELECTROFUSION ELBOW 13100025 | 90 | 16 | 11 | PE100 | 0.21 | ||
63 | PLASSON. ELECTROFUSION ELBOW 13100030 | 90 | 16 | 11 | PE100 | 0.32 | ||
75 | PLASSON. ELECTROFUSION ELBOW 13100035 | 90 | 16 | 11 | PE100 | 0.53 | ||
90 | PLASSON. ELECTROFUSION ELBOW 13100040 | 90 | 16 | 11 | PE100 | 0.88 | ||
110 | PLASSON. ELECTROFUSION ELBOW 13100045 | 90 | 16 | 11 | PE100 | 1.52 | ||
125 | PLASSON. ELECTROFUSION ELBOW 13100050 | 90 | 16 | 11 | PE100 | 2.42 | ||
140 | PLASSON. ELECTROFUSION ELBOW 13100053 | 90 | 16 | 11 | PE100 | 3.02 | ||
160 | PLASSON. ELECTROFUSION ELBOW 13100055 | 90 | 16 | 11 | PE100 | 3.99 | ||
180 | PLASSON. ELECTROFUSION ELBOW 13100060 | 90 | 16 | 11 | PE100 | 7.59 | ||
200 | PLASSON. ELECTROFUSION ELBOW 13100063 | 90 | 16 | 11 | PE100 | 8.67 | ||
225 | PLASSON. ELECTROFUSION ELBOW 13100064 | 90 | 16 | 11 | PE100 | 12.2 |
