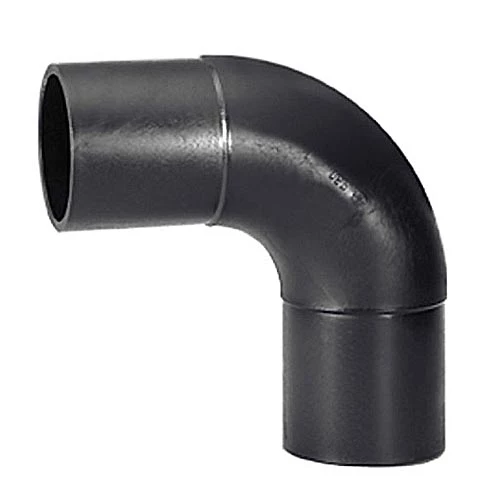

90° LONG BEND, SDR17
The SIMONA multi-bend in SDR17 wall thickness is a flexible and reliable component for pressure pipe installations that demand high durability and performance. It is suitable for both butt welding and electrofusion, offering installers great versatility and efficiency when assembling PE piping systems.
The bend is approved for an operating pressure of up to 10 bar for water and 6 bar for gas, making it ideal for use in both water supply and gas distribution networks. Its precise geometry and streamlined flow design help reduce pressure loss in the system, enhancing overall energy efficiency and reducing the strain on pumps and other equipment.
Using SIMONA multi-bends ensures smooth directional changes in piping systems – with minimal turbulence and optimal flow characteristics.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
| Dia. | Name | Angle | Pressure Rating | SDR | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|---|---|
50 | LONG. BEND 13112510 | 90 | 10 | 17 | PE100 | 0.132 | ||
63 | LONG. BEND 13112520 | 90 | 10 | 17 | PE100 | 0.2 | ||
75 | LONG. BEND 13112530 | 90 | 10 | 17 | PE100 | 0.345 | ||
90 | LONG. BEND 13112540 | 90 | 10 | 17 | PE100 | 0.52 | ||
110 | LONG. BEND 13112550 | 90 | 10 | 17 | PE100 | 0.945 | ||
125 | LONG. BEND 13112560 | 90 | 10 | 17 | PE100 | 1.34 | ||
140 | LONG. BEND 13112570 | 90 | 10 | 17 | PE100 | 1.76 | ||
160 | LONG. BEND 13112580 | 90 | 10 | 17 | PE100 | 2.405 | ||
180 | LONG. BEND 13112590 | 90 | 10 | 17 | PE100 | 3.39 | ||
200 | LONG. BEND 13112600 | 90 | 10 | 17 | PE100 | 4.61 | ||
225 | LONG. BEND 13112610 | 90 | 10 | 17 | PE100 | 6.41 | ||
250 | LONG. BEND 13112620 | 90 | 10 | 17 | PE100 | 9.83 | ||
280 | LONG. BEND 13112630 | 90 | 10 | 17 | PE100 | 13.71 | ||
315 | LONG. BEND 13112640 | 90 | 10 | 17 | PE100 | 19.35 | ||
355 | LONG. BEND 13112647 | 90 | 10 | 17 | PE100 | 22.35 |
