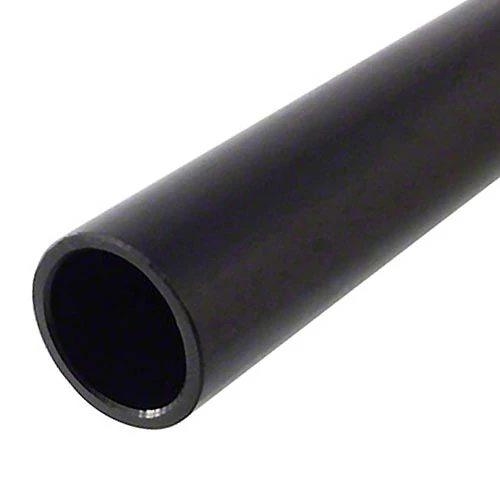

PRESSURE PIPE SDR26 BLACK - 6 METER
PE100 pressure pipe in 6 meter lengths. The pipe does not have an end cap. Manufactured according to EN12201, NORDIC POLYMARK and DK-VAND. Assembled with electrofusion, socket welding or butt welding. Other dimensions, lengths and colors can provided on request.
Advantage of this type of pipes comparing to the other types of pipe materials is it’s high flexibility and resistance to seismic impacts and ground movement and can be used in areas with such characteristics. Flexibility radius of polyethylene pipes is 20d. High resistance of polyethylene to scale makes these type of pipes more adequate for usage in water conduction than other pipe materials.
Polyethylene water pipes are resistant to UV rays and temperatures between -30°C and +60°C.
Security coefficient of PEHD pipes for water is 1.25.
PEHD pipes have high resistance to abrasion
Pressure loss is very low because the friction coefficient is 10x less than with steel pipes.
Coefficient of linear extension for polyethylene is 1,3×10-4C-1 (0,13 mm/m°C)
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
| Dia. | Name | Pressure Rating | SDR | Material Thickness | Length | Sub material | Weight per m | ||
|---|---|---|---|---|---|---|---|---|---|
75 | PIPE BLACK 13490324 | 6 | 26 | 2.9 | 6 | PE100 | 0.638 | ||
90 | PIPE BLACK 13490325 | 6 | 26 | 3.5 | 6 | PE100 | 0.988 | ||
110 | PIPE BLACK 13490335 | 6 | 26 | 4.2 | 6 | PE100 | 1.45 | ||
125 | PIPE BLACK 13490345 | 6 | 26 | 4.8 | 6 | PE100 | 1.86 | ||
140 | PIPE BLACK 13490355 | 6 | 26 | 5.4 | 6 | PE100 | 2.35 | ||
160 | PIPE BLACK 13490365 | 6 | 26 | 6.2 | 6 | PE100 | 3.08 | ||
180 | PIPE BLACK 13490375 | 6 | 26 | 6.9 | 6 | PE100 | 3.83 | ||
200 | PIPE BLACK 13490385 | 6 | 26 | 7.7 | 6 | PE100 | 4.74 | ||
225 | PIPE BLACK 13490395 | 6 | 26 | 8.6 | 6 | PE100 | 5.96 | ||
250 | PIPE BLACK 13490405 | 6 | 26 | 9.6 | 6 | PE100 | 7.83 | ||
280 | PIPE BLACK 13490415 | 6 | 26 | 10.7 | 6 | PE100 | 9.2 | ||
315 | PIPE BLACK 13490425 | 6 | 26 | 12.1 | 6 | PE100 | 11.7 | ||
355 | PIPE BLACK 13490435 | 6 | 26 | 13.6 | 6 | PE100 | 14.8 | ||
400 | PIPE BLACK 13490445 | 6 | 26 | 15.3 | 6 | PE100 | 18.8 | ||
450 | PIPE BLACK 13490457 | 6 | 26 | 17.2 | 6 | PE100 | 23.7 |
